型號Model
|
ZJ5822A
|
|
面線剪線裝置face thread trimmer
|
自動剪面線Auto trimmer top-thread
|
|
底線剪線裝置bobbin thread trimmer
|
短線剪切Short thread cut
|
|
用途Application
|
男裝、女裝men's and women's cloth
|
|
縫制速度Speed
|
1000~2700rpm(可以100rpm為單位設定Itcanbe set at 100rpm)
|
|

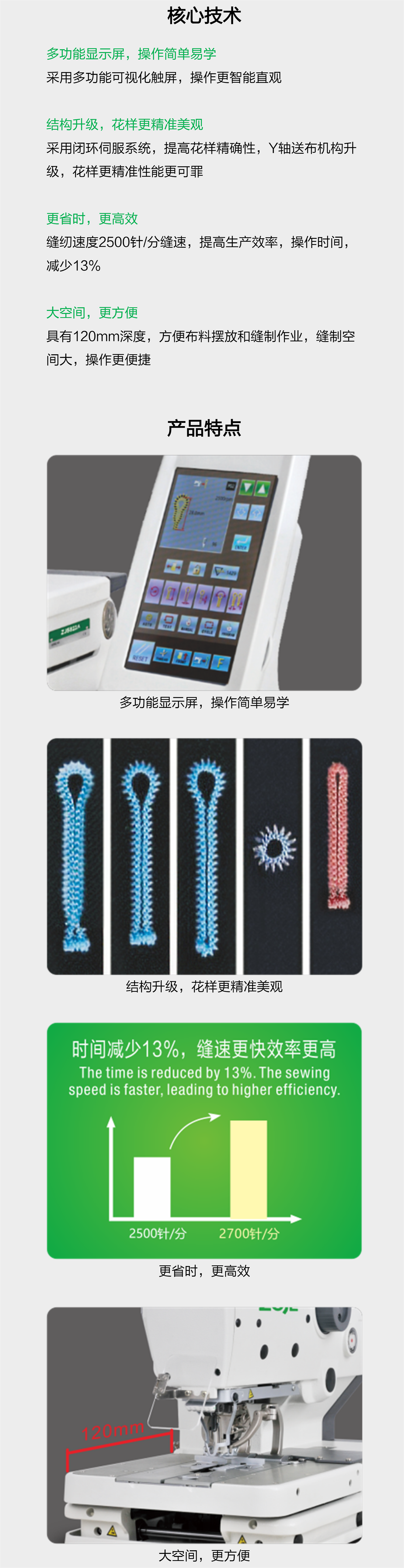

功能Features
|
剪線裝置可較短的剪切所有線頭。在縫紉持續過程中可在更短距離內安全把握線尾。減少水洗后二次修剪線頭。The
thread cutter can cut all thread endsshorter.In the process of sewing can
beheld in a shorter distance. Reducesecondary trimming after washing.
|
|
針跡形狀stiich appearance
|
|
|
線尾長度End length
|
5-6mm
|
|
鎖逢長度holing length
|
5-30mm
|
|
針跡節距stitch length
|
0.5~2.0mm
|
|
針跡幅寬stitch width
|
1.5mm~5.0mm(機械式1.5mm~4.0mm、程序式可加寬1.0mm1.5mm~5.0mm(
mechanical1.5mm~4.0mm、 program can increase width1.0mm )
|
|
錐形加固長度cone-shape reinforce
length
|
0~20mm
|
|
壓腳高度f(wàn)oot lifter height
|
標準為12mm(可以到16mm為止)standard12mm(maximum achievel6mm )
|
|
啟動方式start mode
|
腳踏開關(腳踏板式、2連腳踏板式)或是手動開關
Pedal switch( by pedal, double pedal)or manual
|
|
送布方式,cloth feed mode
|
X、Y、?的3脈沖馬達間歇送布pause feed by 3 pulse motor
|
|
機針Needle
|
DOx558-NY2 #14~#18(風琴)
|
|
安全裝置safety device
|
內藏暫停功能及當安全電路發生故障時的自動停止裝置
With built-in pause function and auto stop device when error of circuit
|
|
上軸馬達axle motor
|
Ac伺服馬達(4極 550W)AC servo motor (4P 550W)
|
|
空氣壓力air pressure
|
主調節器:0.5MPa錘子壓力調節器:0.4MPahammer
pressure regulator 0.4MPa
main regulator 0.5MPa
|
|
空氣消耗量air consumption
|
43.2 1/min(8次循環/min)8 times cycle/min
|
|
電源Power
|
單相100V/200V、三相200V/220V/380V/400V
400VA
Single phase100V/200v、3-phase200V/220V380V/400V 400VA
|
|
重量Weight
|
頭部約120kg、操作盤約0.6kghead120kg、
panel0.6kg控制箱14.2~16.2 kg(根據出口國的不同而不同)
control box14.2~16.2 kg
|
|
|
